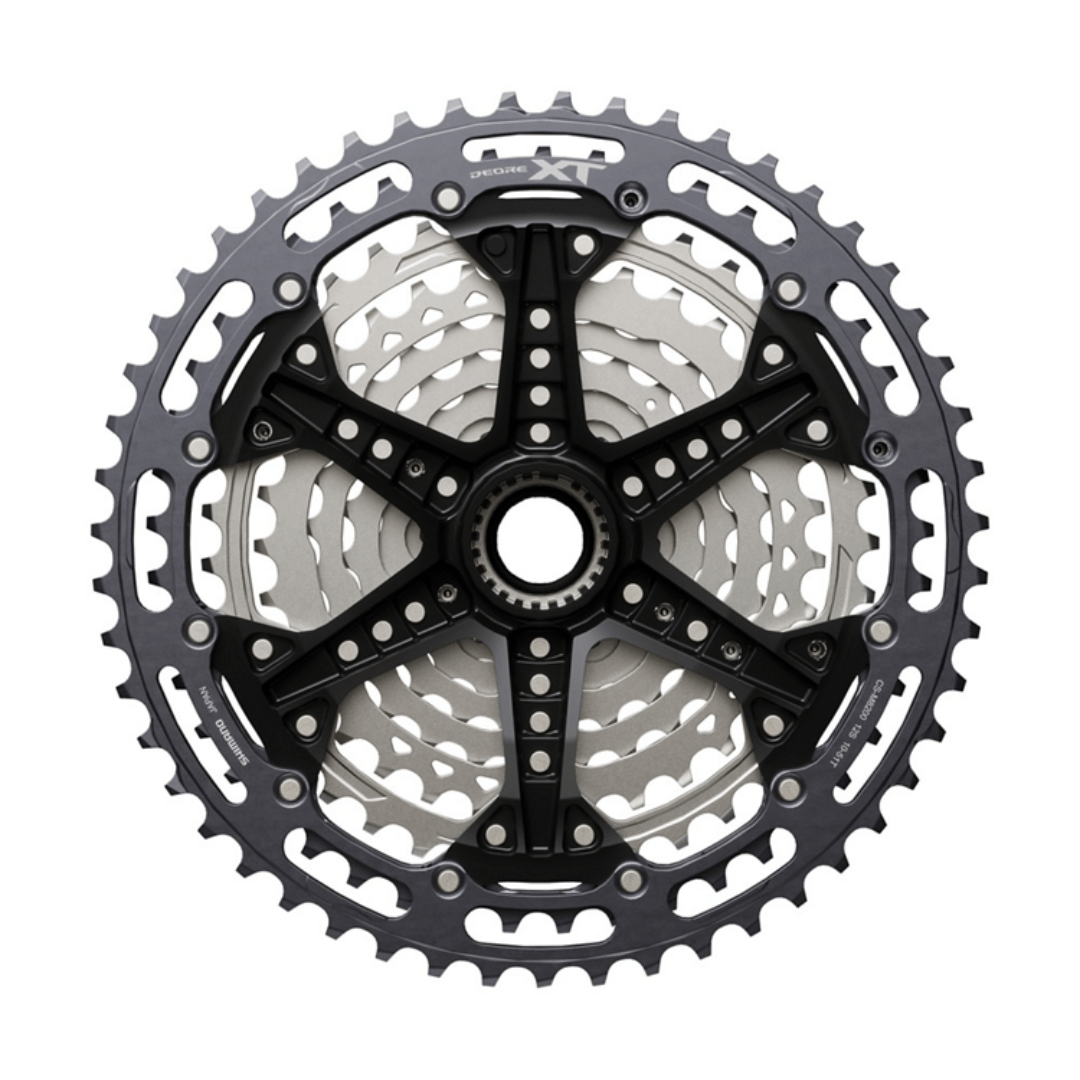

Shimano CS-M8200 Deore XT MTB 12 Speed Cassette represents the evolution of HYPERGLIDE + shifting. New cassette cog tooth profiles improve shifting under high load while remaining smooth, fast, and durable. It is also MICRO SPLINE compatible and built with steel and alloy cogs to optimize weight and durability.
FEATURE

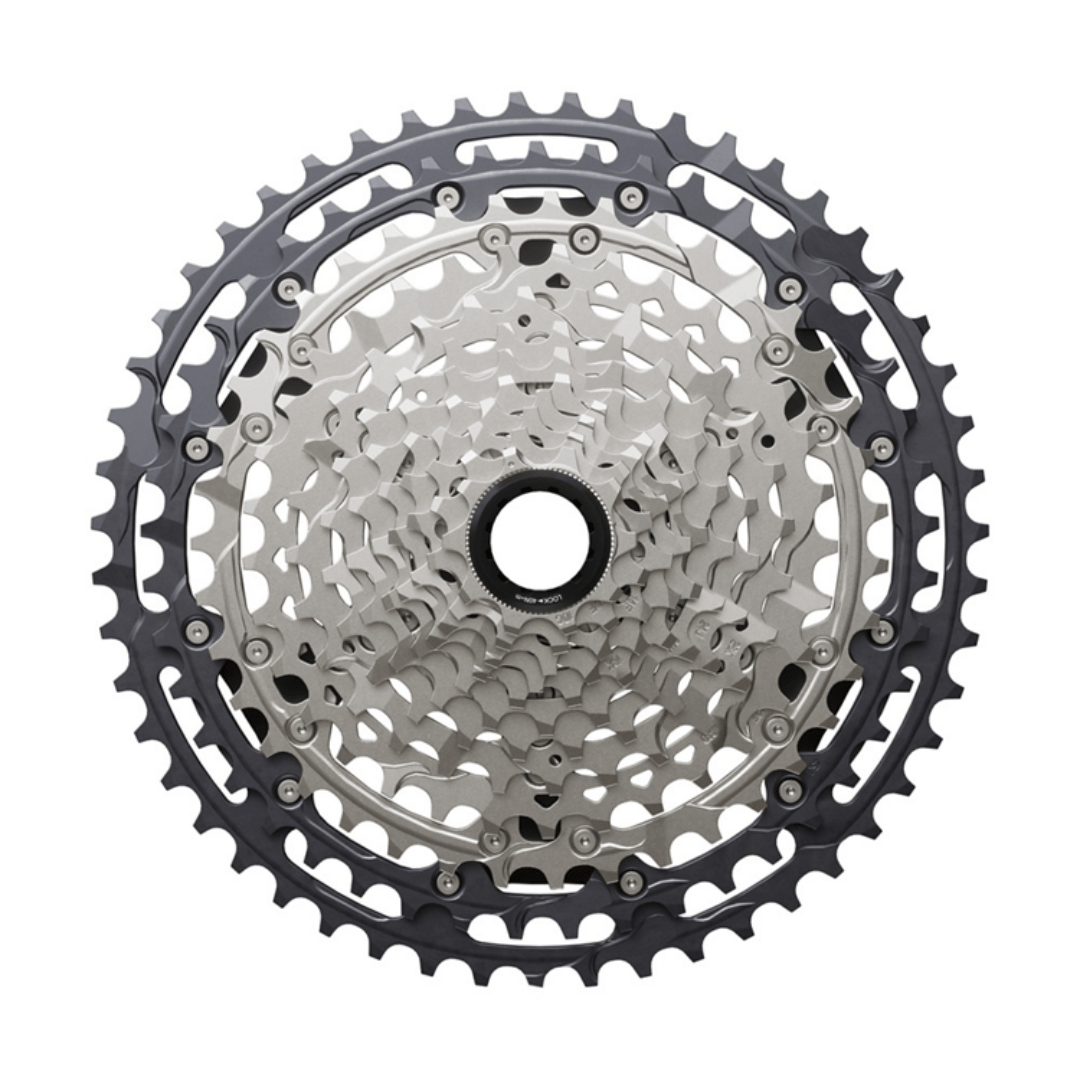

10-51T 510% Range: The widest gear range and most frame compatibility of all DEORE XT cassette options.
FEATURE

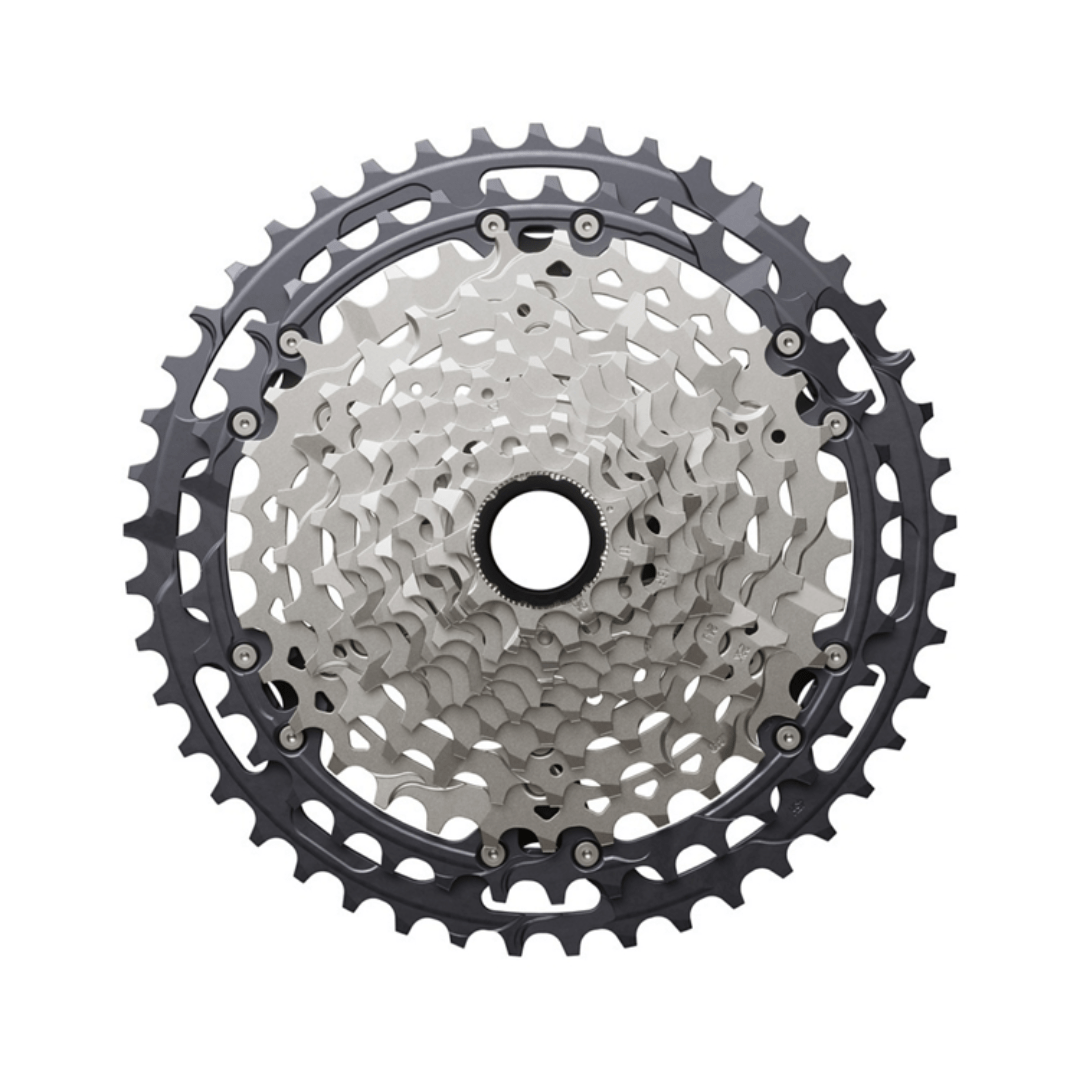

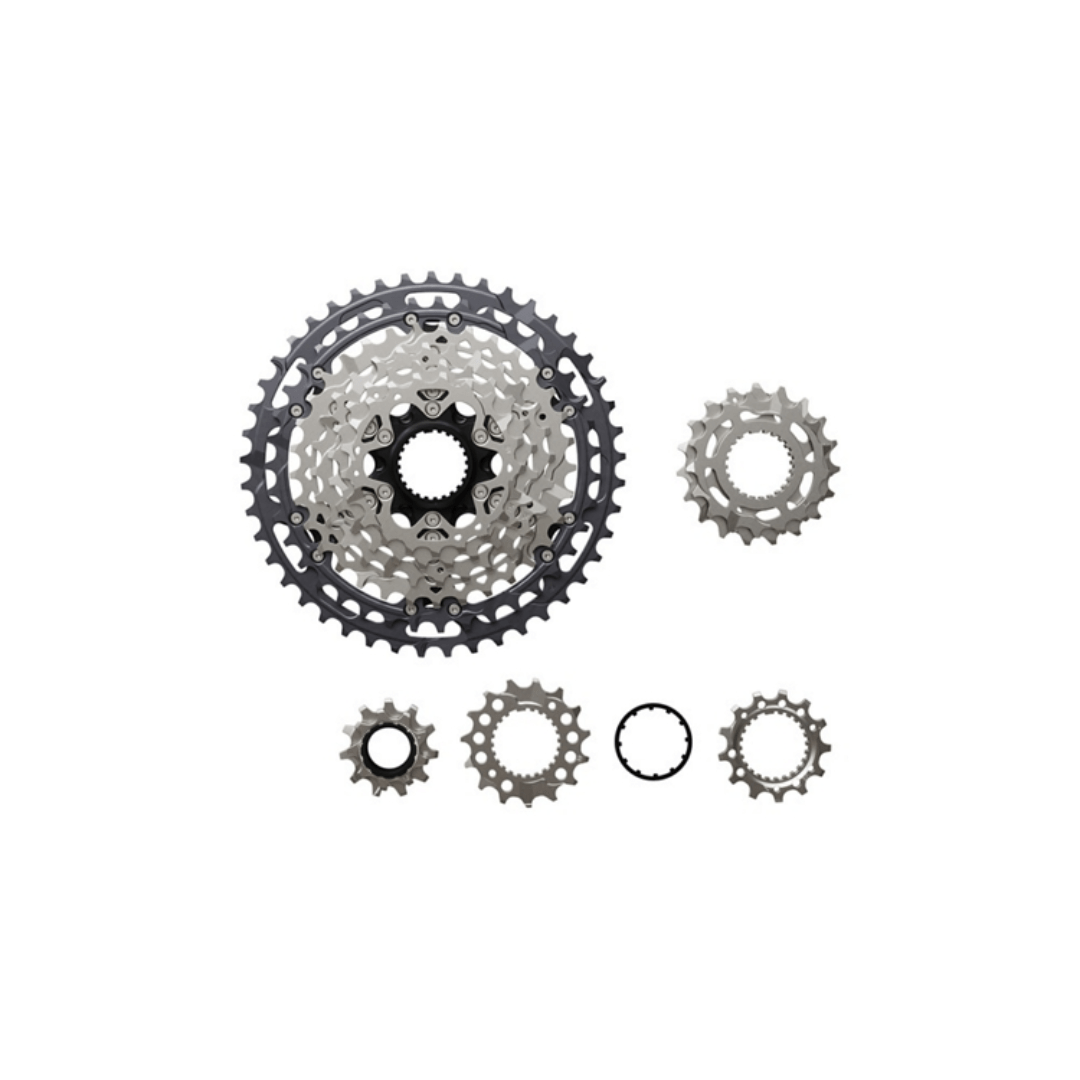

9-45T Compact Drivetrain: When specified with smaller chainrings and the mid-cage DEORE XT rear derailleur, the 9-45T DEORE XT cassette provides a lightweight, ground-clearing option with a no-sacrifice 500% range.
FEATURE
FREEHUB Compatibility: CS-M8200 is compatible with the MICRO SPLINE FREEHUB body standard. 9-45T is compatible with MICRO SPLINE FREEHUB standards and mounts with the use of a special lockring tool (TL-LR021).
FEATURE

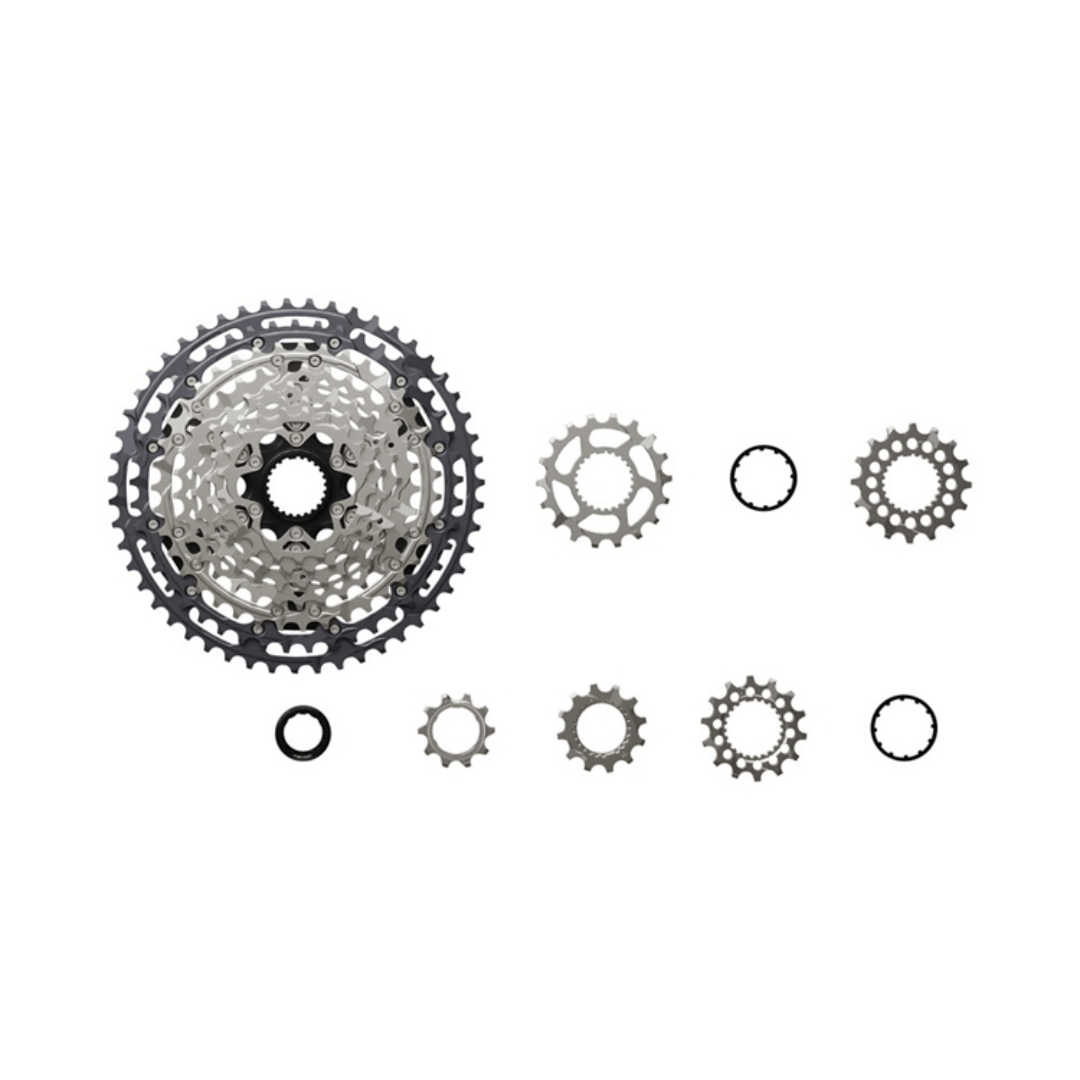

Build Materials: The strategic use of steel and alloy ensures the CS-M8200 cassette is robust enough to provide confidence to any style of rider.
Model No – CS-M8200-12
Series – DEORE XT
Type – HYPERGLIDE+
Rear speeds – 12
Compatible chain – HG 12-speed
Combination 9-45T – 9-11-13-15-17-19-21-24-28-33-39-45T
Combination 10-51 – 10-12-14-16-18-21-24-28-33-39-45-51T
Spline type – MICRO SPLINE
Remarks – TL-LR021, Lock ring tool for 9-45T is compatible with 12mm E-THRU.
