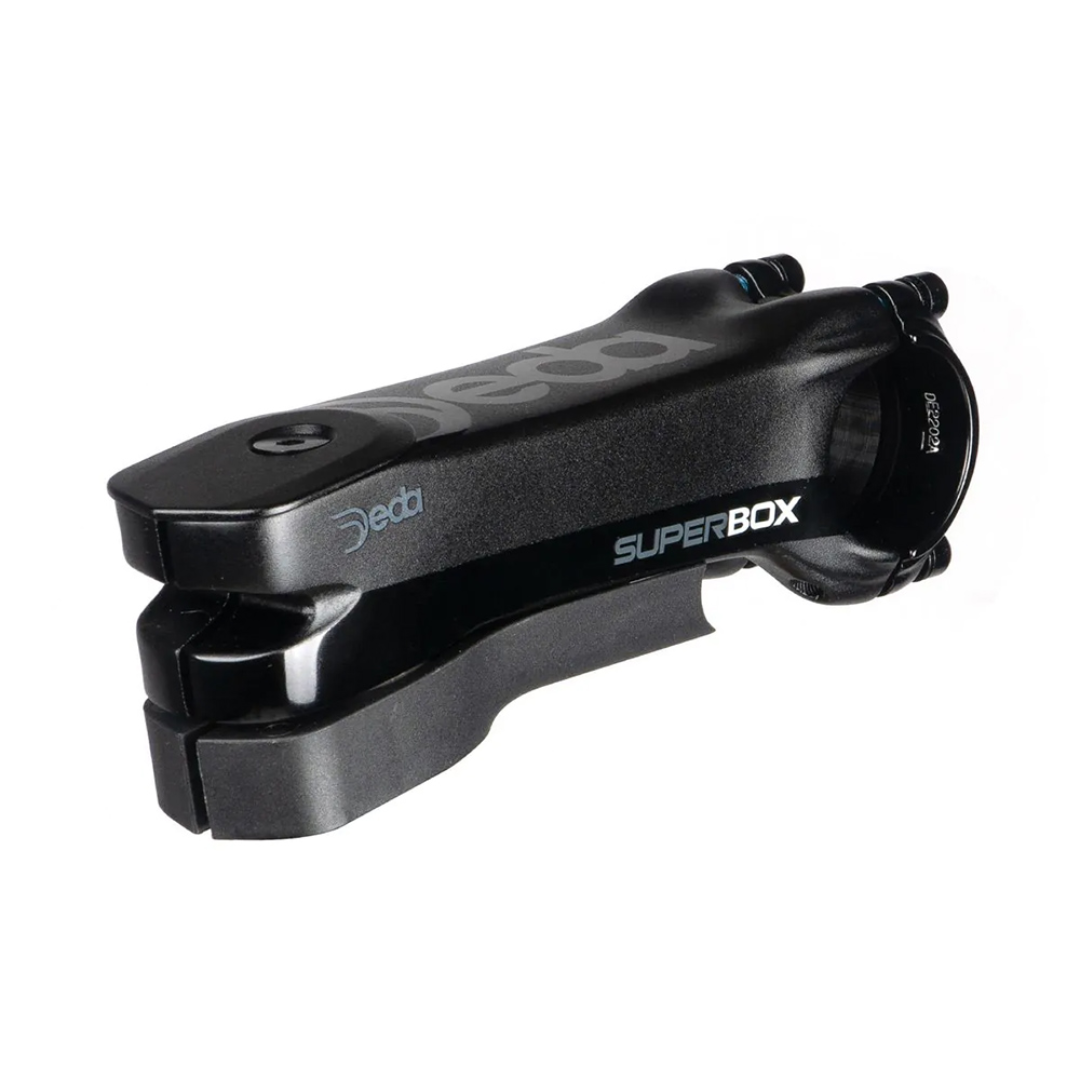

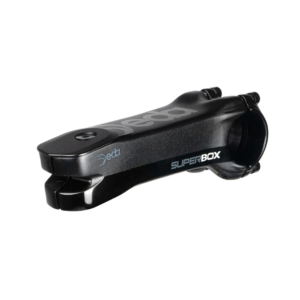

Deda Superbox DCR V2 Stem

Engineered for seamless integration and top-tier performance, the Superbox V2 represents the next generation of stem design.

• Seamless cockpit integration
• Supports DCR, S-DCR, Direct, and External cable routing
• Suitable for road, gravel, and MTB builds

Now upgraded with the RS spacers system, shared with the Alanera RS, this stem delivers unmatched cable routing versatility for today’s clean cockpit standards. Superbox V2 introduces premium GST-coated screws that offers exceptional resistance to corrosion and scratches. With support for DCR, S-DCR, Direct, and External routing, Superbox V2 adapts to virtually any frame and handlebar configuration.

Whether you’re building a sleek road setup or an internal-routed gravel or MTB bike, this stem ensures optimal integration without compromise. Compatible with both 46 mm (1-1/8″) and 56 mm (1.5″) upper head tubes, it fits a wide range of modern bikes.

Features & Benefits

• Next‑generation stem engineered for seamless cockpit integration
• Supports DCR, S-DCR, Direct, and External cable routing
• Compatible with both 46 mm (1-1/8″) and 56 mm (1.5″) upper head tubes
• Suitable for road, gravel, and MTB builds with internal or external routing
• Equipped with GST‑coated steel screws for enhanced corrosion and scratch resistance

Specifications

• Material: Alloy 6061
• Screws: Steel, Black (GST-coated)
• Angle: 82 degrees
• Handlebar diameter: 31.7mm
• Clamp height: 32mm, 47mm with topcover
• Steerer: 1 1/8″ (28.6mm)
• Weight: 175g (110mm)

What’s in the box?

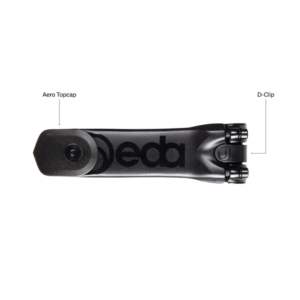

• Integrated topcap
• Headset spacers
• Top cover for headtube 56 and 46mm
• D-clip insert

Note: The internal cable routing (DCR) fits electronic groupset only (up to 3 cables), the semi-integrated cable routing (S-DCR) fits any bike & groupset configuration (up to 4 cables).
