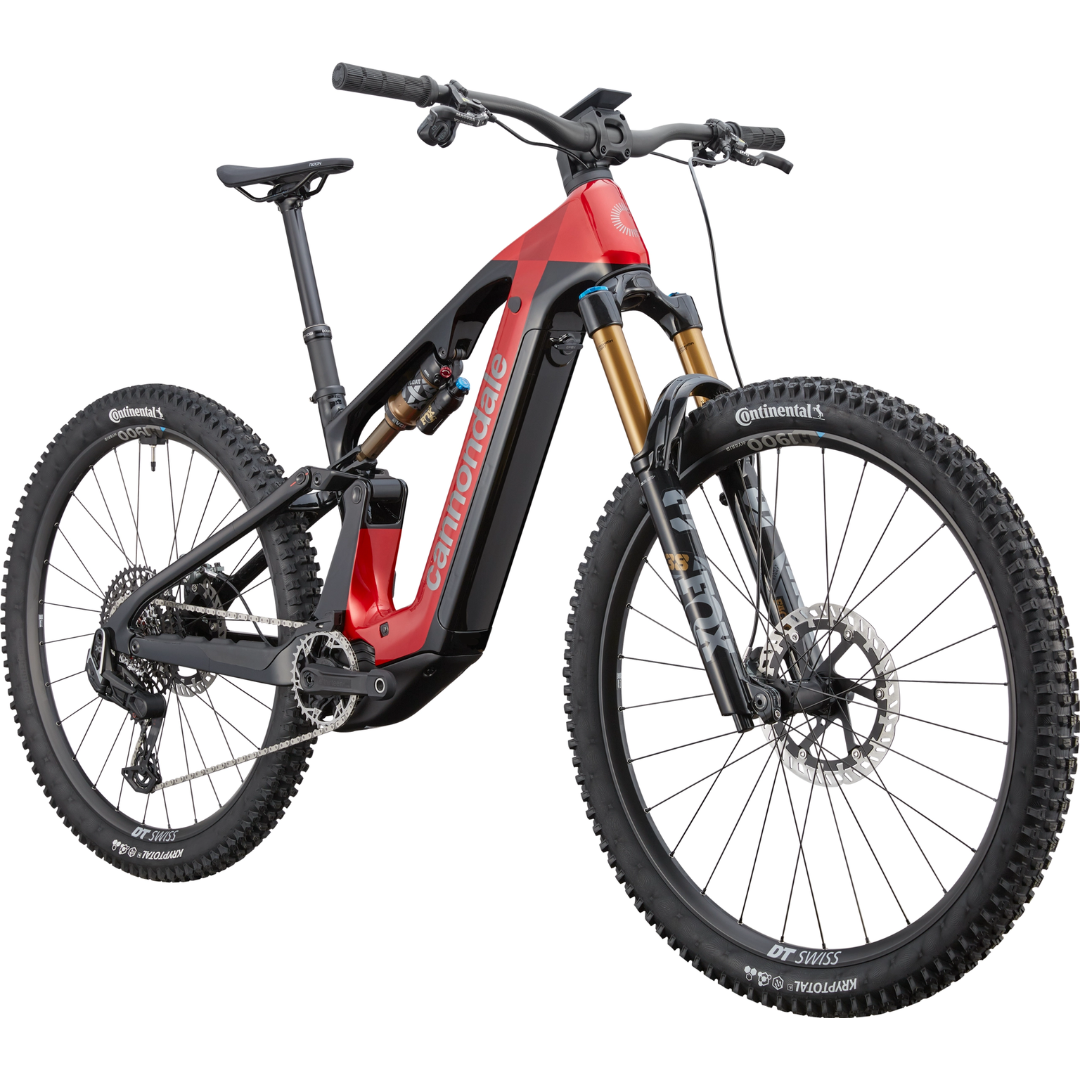

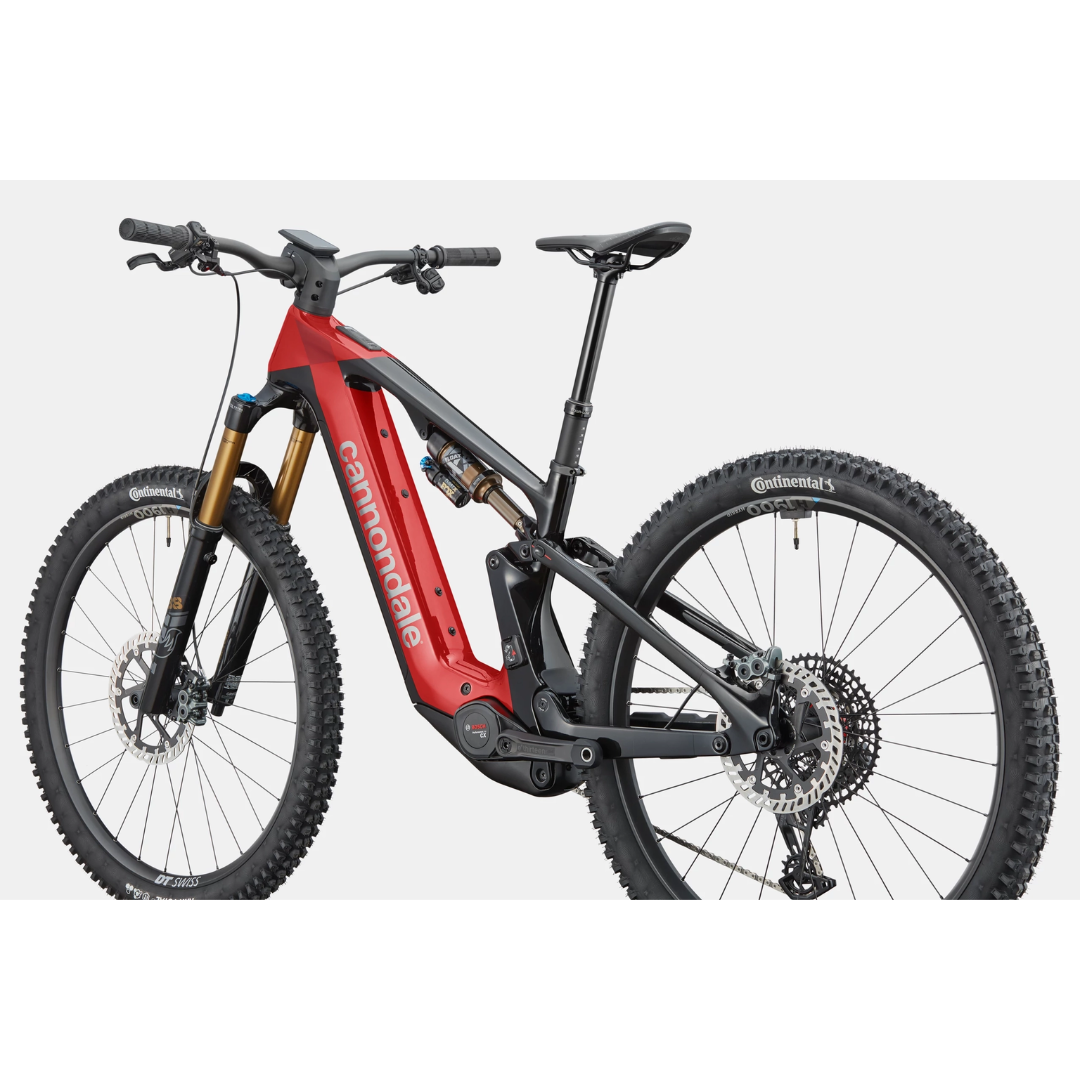

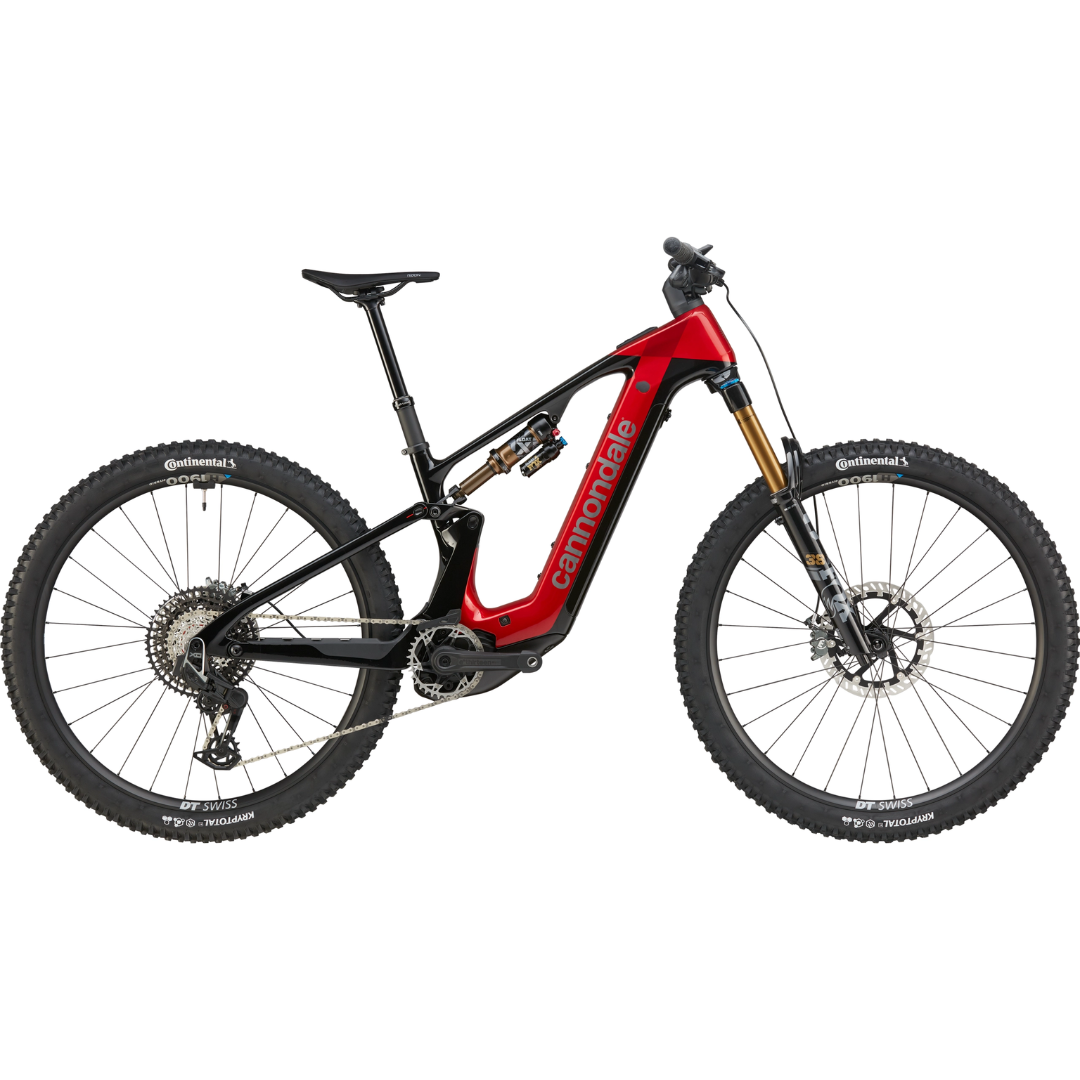

Cannondale Moterra Electric Mountain Bike 2026 – Metallic Red
£6,719.99
Cannondale Moterra Electric Mountain Bike 2026 – Metallic Red
More Juice, No Excuse
The Moterra packs massive power, range, and silky suspension, handling rugged terrain like a luxury off-roader. Built to go further—faster.
Model Description
Moterra 1 balances brute strength with trail-savvy finesse. Featuring a new, lightweight, full carbon frame and 160/150mm of travel, it’s built for those who demand big power, silky smooth delivery, and absolute control. A Bosch CX motor with an 800Wh battery gives you the juice for even the biggest missions. A Kiox 500 display integrated into the stem keeps you connected, while the top-end Fox 38 Factory fork and Float X Factory shock soak up every bump. SRAM XO/GX AXS wireless shifting, Magura MT7 brakes, and robust DT Swiss H1900 wheels bring top-tier precision, making it the perfect blend of speed, style, and capability.
What it’s for
Endless spins, uphill wins, and permanent grins on all kinds of trails, from the mild to the wild
Highlights
- A lightweight carbon fiber frame – Proportional Response size-specific suspension, tuned for specifically for the air shock and 29” wheels
- Bosch’s most powerful system – Performance CX motor and 800Wh battery. Incredibly natural power delivery and huge range
- Top of the line Fox Factory suspension – 160mm Float Factory 38 fork and Float X Factory piggyback shock
- Rugged DT Swiss H 1900 Spline EMTB Wheelset – Built to survive – 30mm inner width, 370 hubs with durable Ratchet LN internals
- Wireless electronic shifting from a blended SRAM Eagle XO/GX AXS 12-speed group
- Powerful, controllable stopping from Magura’s MT7 4-piston stoppers with 220/203mm rotors
| FRAMESET | |
|---|---|
| Frame | Moterra Carbon, 29″ wheels, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5” – 1.8” tapered headtube, 40mm two-bolt kickstand compatible |
| Fork | Fox Float Factory 38, 160mm, GripX2 Damper, Kashima coating, 15x110mm Kabolt thru-axle, tapered steerer, 44mm offset |
| Headset | Acros ICR, 1.5″ to 1.8″, sealed bearings |
| Rear Shock | Fox Float X Factory, Kashima coating, 2 pos adj, EVOL LV, 230×62.5mm |
| E-SYSTEM | |

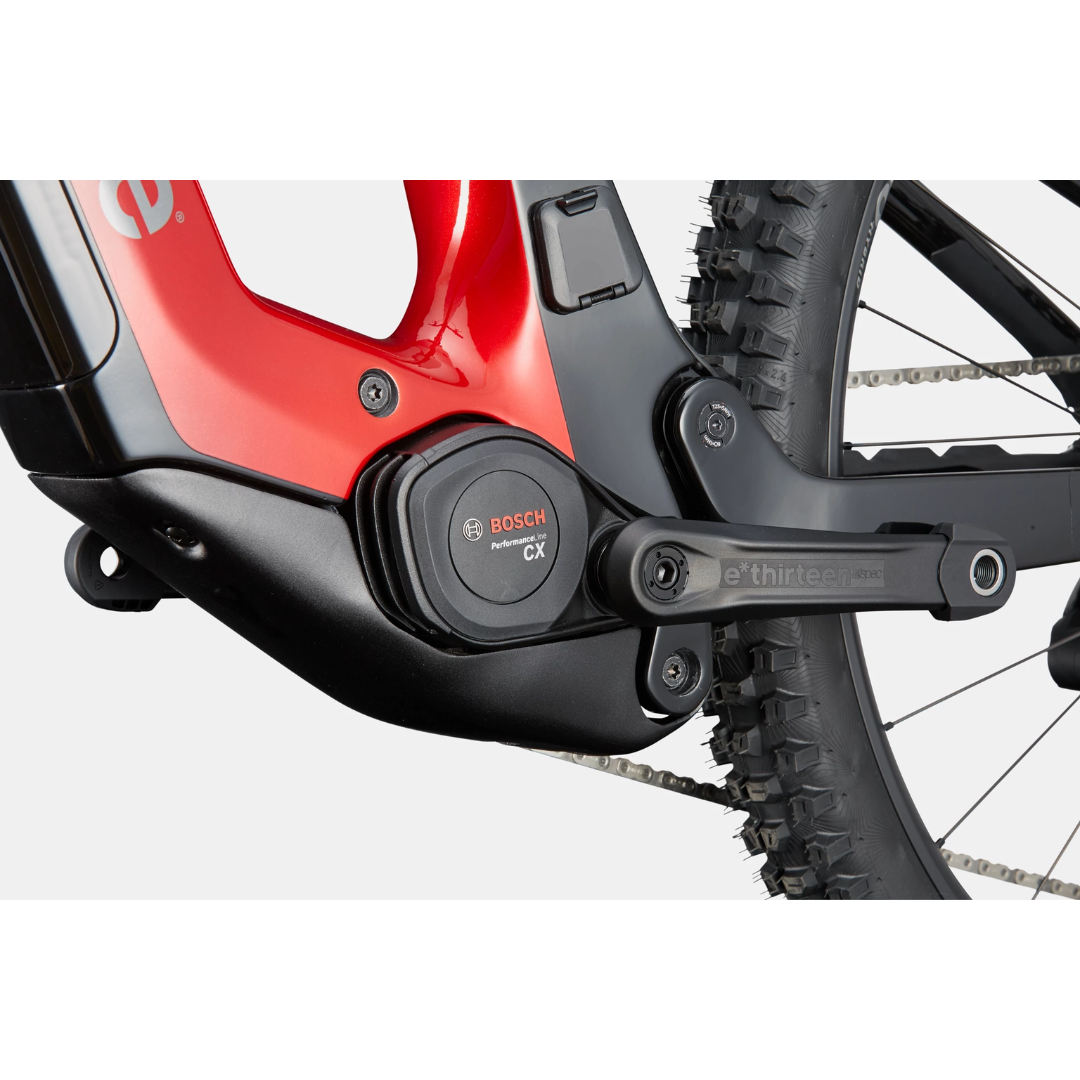

| Drive Unit | Bosch Performance Line CX |
| Battery | Bosch PowerTube, 800Wh |

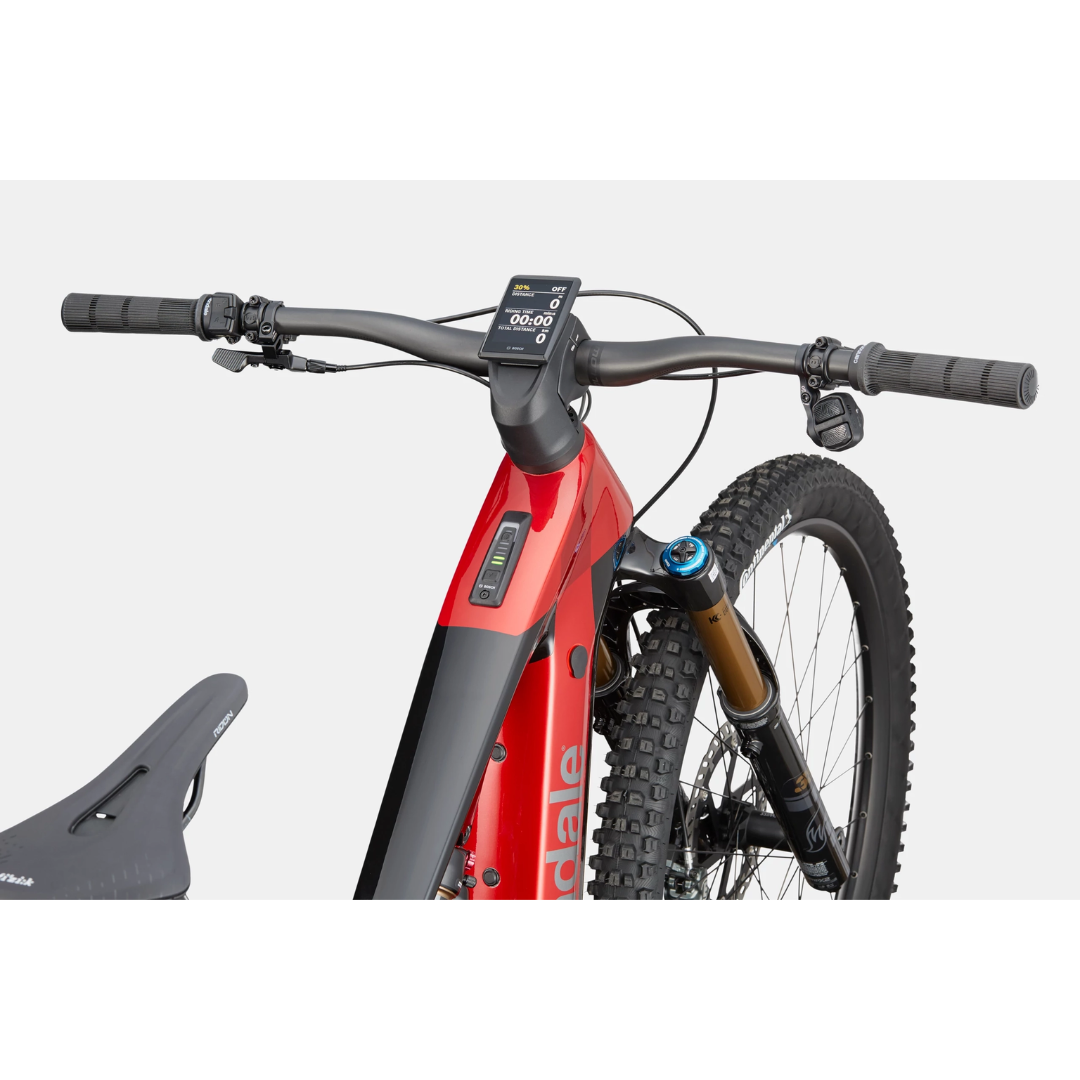

| Display | Top Tube System Controller w/ Bosch Kiox 500 & Mini Remote |
| Charger | Bosch 4A |
| DRIVETRAIN | |
| Rear Derailleur | SRAM XO Eagle AXS, T-Type |
| Shifters | SRAM Eagle AXS T-Type Pod Controller |
| Chain | SRAM GX T-Type, 12-speed |
| Crank | e*thirteen e*spec Helix Core, 55mm chainline, 160mm, 34T |
| Rear Cogs | SRAM GX Eagle T-Type, 10-52, 12-speed |
| BRAKES | |
| Brakes | Magura MT7 4-piston hydraulic disc, 220/203mm MDR-P rotors |
| Brake Levers | Magura MT7 hydraulic disc |
| WHEELS | |
| Hubs | (F) DT Swiss 370, 15x110mm thru-axle / (R) DT Swiss 370 Ratchet System 18, 12x148mm thru-axle, 6-bolt |
| Rims | DT Swiss H 1900 Spline, 30mm inner width, TC (tubeless ready) |
| Spokes | DT Swiss Competition, straight pull |
| Tires | (F) Continental Kryptotal-F, 29×2.4″, Enduro Soft Black Foldable / (R) Continental Kryptotal-R, 29×2.4″, Enduro Soft Black Foldable |
| COMPONENTS | |
| Handlebar | HollowGram SAVE riser bar, Carbon, 35mm clamp, 30mm rise, 8° sweep, 5° rise, 780mm |
| Grips | Cannondale TaperRidge |
| Stem | Cannondale Trail HeadsUp w/ integrated display mount, 3D Forged 6061 Alloy, 1-1/8″, 45mm, 0° |
| Saddle | Fizik Terra Aidon X5, 145mm, Wingflex, S-Alloy Mobius rail |
| Seatpost | Cannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL) |
| Extras | Tubeless Valve Stems, Bosch PowerMore range extender compatible |
| Size | S, M, L, XL |
|---|
